AI Vision Inspection Starts With a Measurement Plan

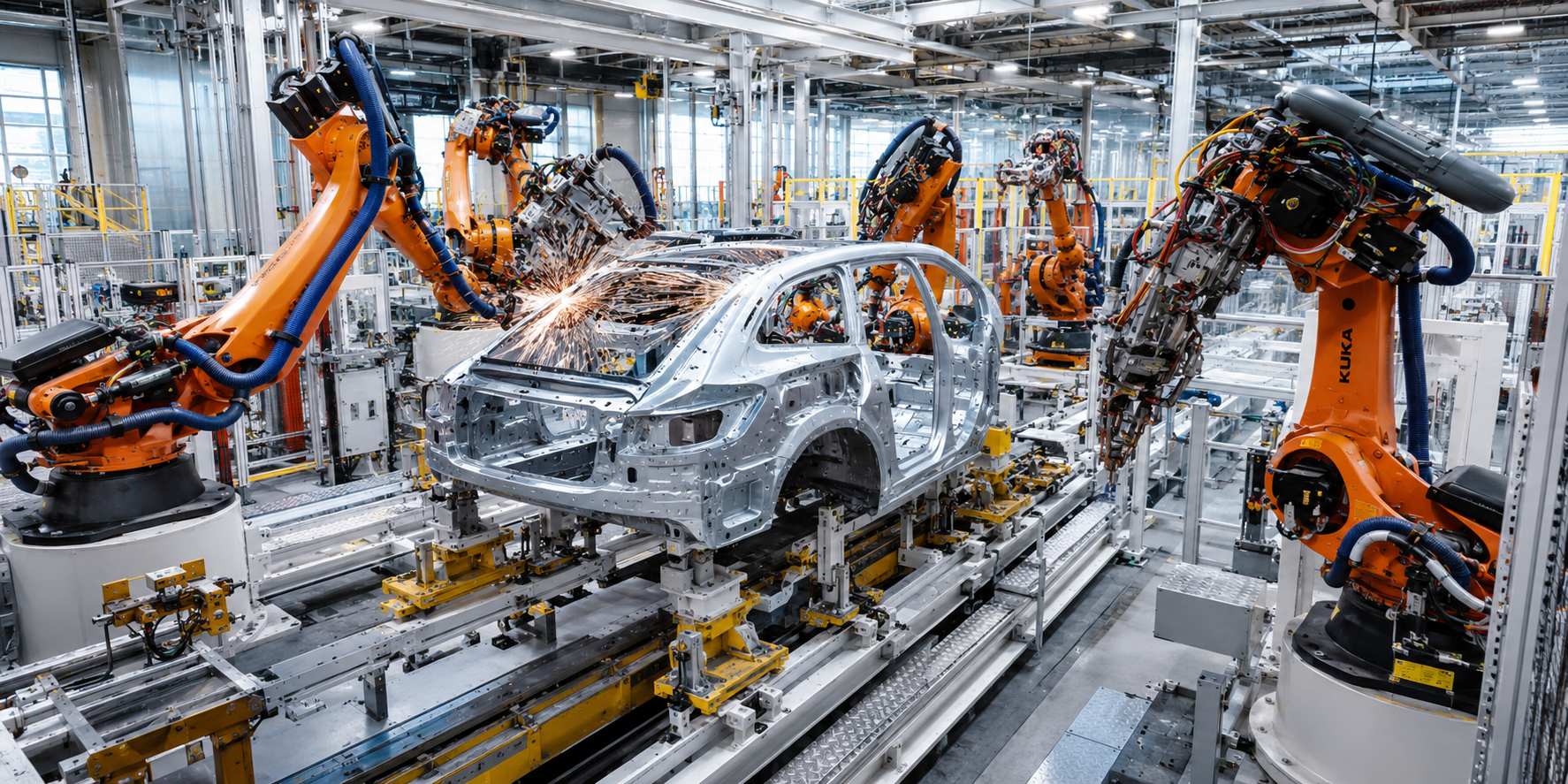

KUKA industrial robots welding a vehicle body-in-white on an automotive factory line

AI vision inspection is attractive because it promises a direct answer to a familiar factory problem: people miss defects, manual inspection is slow, and conventional rule-based vision can be brittle. Modern models can recognize patterns that are hard to describe with simple thresholds. That capability is useful, but it does not remove the need for a measurement plan. In production, an inspection system is judged by the decisions it supports, the defects it catches, and the false alarms it avoids.

Define the defect before training the model

The first step is defining the defect. A vague label such as scratch, contamination, void, short shot, poor finish, or bad weld is rarely enough. The team needs examples, boundaries, severity levels, and disposition rules. Which scratches are cosmetic and acceptable? Which surface marks affect sealing? Which color variation is normal? Which weld appearance requires rework? If experienced inspectors disagree, the model will inherit that disagreement. AI can scale a decision pattern, but the factory still has to decide what the decision means.

A useful defect definition has three parts. It describes the physical condition, identifies where and when the condition matters, and explains the required action. For example: reject if a raised burr appears on the sealing land above a defined size; rework if flash extends past a trim line; alert maintenance if a stain pattern appears three times in a shift. This connects image recognition to factory behavior. A model that finds something unusual becomes valuable when the plant knows what to do next.

Treat image capture as a measurement process

Image quality is the next constraint. Many AI projects focus on the algorithm while the real improvement comes from lighting, optics, fixturing, and camera placement. Stable imaging reduces the burden on the model. Controlled illumination, fixed distance, repeatable part orientation, clean lenses, and known exposure settings can turn a difficult AI problem into a simpler inspection task. Poor imaging does the opposite. It forces the model to separate defects from shadows, reflections, motion blur, dust, and inconsistent backgrounds.

The most dependable vision cells treat image capture as a measurement process. That means the team records camera settings, lens type, lighting geometry, trigger timing, fixture position, and cleaning routines. It also means the system has a way to detect image problems before they become quality problems. A blocked light, bumped camera, dirty window, or changed background can shift results even when the model has not changed. The cell should monitor basic health signals such as brightness, focus, part location, and missing regions of interest.

Build the dataset around real production variation

Sampling strategy matters because factories rarely have a balanced library of good and bad examples. Good parts are common. Serious defects may be rare, seasonal, supplier-specific, or caused by a machine condition that no longer exists. Training a model on a small pile of dramatic failures can create false confidence. The model may perform well in a demo and struggle when it sees borderline conditions or new variation.

A better dataset captures normal variation first. Include different lots, shifts, tools, operators, material colors, surface finishes, temperatures, and machine states where relevant. Then add confirmed defect examples with labels reviewed by qualified people. The team should preserve rejected parts or reference images when possible so future labeling debates have evidence. If defect frequency is low, synthetic augmentation or anomaly detection may help, but those tools still need validation against real production conditions.

Connect inspection results to factory context

Metrology links are important because many visual defects connect to measurable features. A surface mark may correlate with tool wear. A short shot may correlate with part weight. A burr may correlate with cutter condition. A coating defect may correlate with thickness, humidity, or cure time. NIST’s smart manufacturing and metrology work emphasizes the value of measurement systems, interoperability, and data that can support process understanding. For a factory AI project, that means image results should connect to part IDs, equipment states, inspection measurements, and final disposition when possible. The same controls-and-data discipline appears in Factory Signal’s look at factory AI architecture.

That connection turns inspection into learning. If the vision system rejects ten parts, the team should be able to ask what they had in common. Same cavity? Same operator loading station? Same tool offset? Same supplier lot? Same time after a cleaning cycle? Without that context, AI vision becomes a faster sorting machine. With context, it can support root-cause work and process improvement.

Performance metrics should reflect factory risk. Accuracy alone can be misleading when defects are rare. A system that labels every part good may show high accuracy in a dataset where nearly every part is good, while failing its actual purpose. Quality teams should review false accepts, false rejects, precision, recall, and the cost of each mistake. A false accept may send a bad part to a customer. A false reject may create scrap, rework, or unnecessary downtime. The right threshold depends on which risk is more expensive and how secondary inspection is handled.

Plan operator review and drift control

Operator workflow is equally important. The system should show clear images, explain the region of concern where practical, and give operators a simple way to confirm, reclassify, or escalate questionable results. If every alert stops the line with no context, operators will work around it. If the system hides its reasoning and makes correction difficult, trust will decline. Human review should feed back into the training and monitoring process through controlled labels rather than informal screenshots scattered across messages.

Drift monitoring keeps the system honest after launch. Parts change, suppliers change, lights age, lenses move, tooling wears, and operators adapt. A model approved in June may behave differently in November. The plant should define a review cadence and drift triggers. Examples include rising reject rates, sudden drops in confidence, new clusters of defects, repeated operator overrides, or changes to material and process settings. A controlled update process should identify who can approve new labels, retraining, threshold changes, and production release.

Cybersecurity and data ownership also deserve attention. Inspection images may contain customer parts, proprietary geometry, serial numbers, or process details. A cloud-connected tool can be appropriate, but the shop should know where images are stored, who can access them, how long they are retained, and how the vendor uses them. Schools and small shops should be especially careful with customer-sensitive work. A simple local storage rule and naming convention can prevent confusion later.

A practical pilot checklist

A practical pilot plan can stay focused:

Pick one part family and one defect category.
Write a clear defect definition with examples.
Stabilize lighting, fixturing, and camera settings.
Collect normal variation across real production.
Label defects with qualified review.
Define false-accept and false-reject costs.
Connect image results to part ID and disposition.
Create an operator review workflow.
Monitor drift and control model updates.

This approach makes AI vision more useful and easier to evaluate. It also helps vendors. A supplier can design a stronger system when the factory provides defect definitions, sample parts, process context, and success metrics instead of asking for a generic AI camera.

The takeaway: AI vision inspection succeeds when the factory treats images as measurements and decisions as process steps. Better models help, but stable capture, clear labels, useful context, operator workflow, and drift control decide whether the system improves quality or becomes another alarm source.
